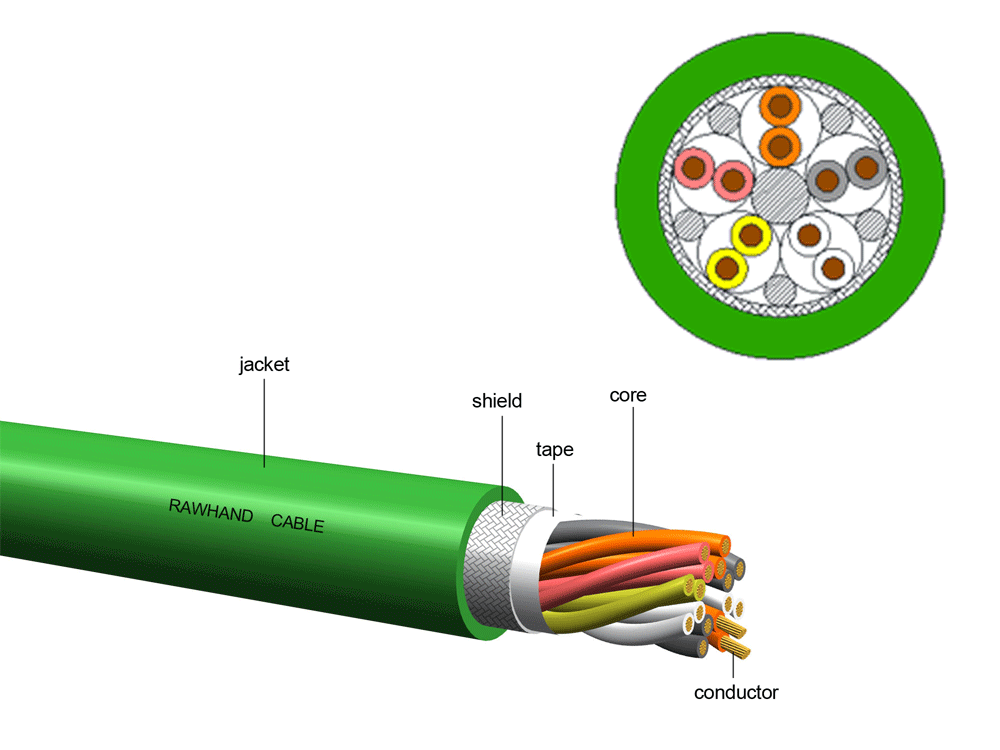

可定制化防干扰外径细
|
芯线数和导体标称截面积 |
芯线外径 |
电缆外径 |
导体直流阻抗 |
绝缘阻抗 |
成品允许电流 |
|
㎜2 |
mm |
mm |
Ω/KM |
MΩ·KM |
A |
|
2P0.13(26AWG) |
1.0 |
5.5 |
134.4 |
10 |
3.1 |
|
3P0.13(26AWG) |
1.0 |
5.7 |
134.4 |
2.6 |
|
|
4P0.13(26AWG) |
1.0 |
6.4 |
134.4 |
2.4 |
|
|
8P0.13(26AWG) |
1.0 |
7.8 |
134.4 |
1.9 |
|
|
6P0.13+1P0.2 |
1.0/1.1 |
7.8 |
134.4/98.3 |
2.0/2.6 |
|
|
2P0.2(24AWG) |
1.1 |
6.0 |
98.3 |
3.9 |
|
|
3P0.2(24AWG) |
1.1 |
6.3 |
98.3 |
3.5 |
|
|
4P0.2(24AWG) |
1.1 |
6.7 |
98.3 |
3.1 |
|
|
8P0.2(24AWG) |
1.1 |
8.3 |
98.3 |
2.5 |
|
|
6P0.2+1P0.34(22AWG) |
1.1/1.25 |
8.7 |
98.3/61.1 |
2.6/3.4 |
